SPECIFICATIONS

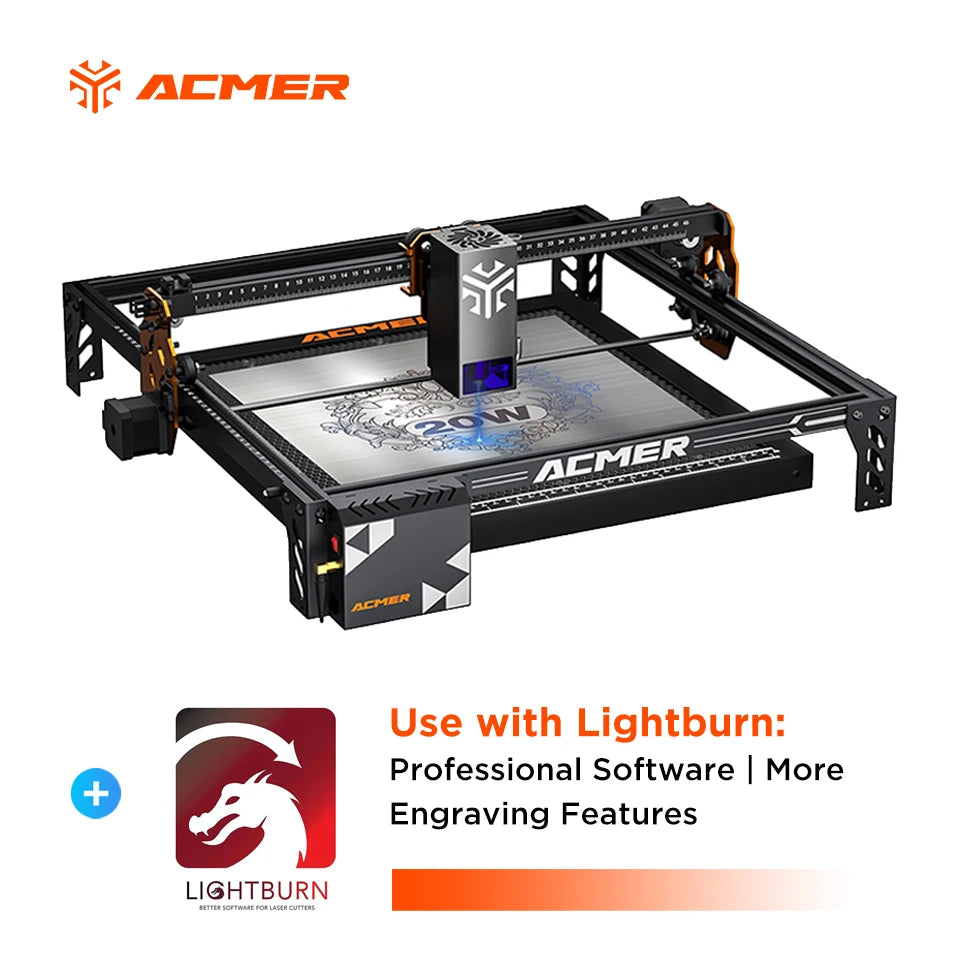

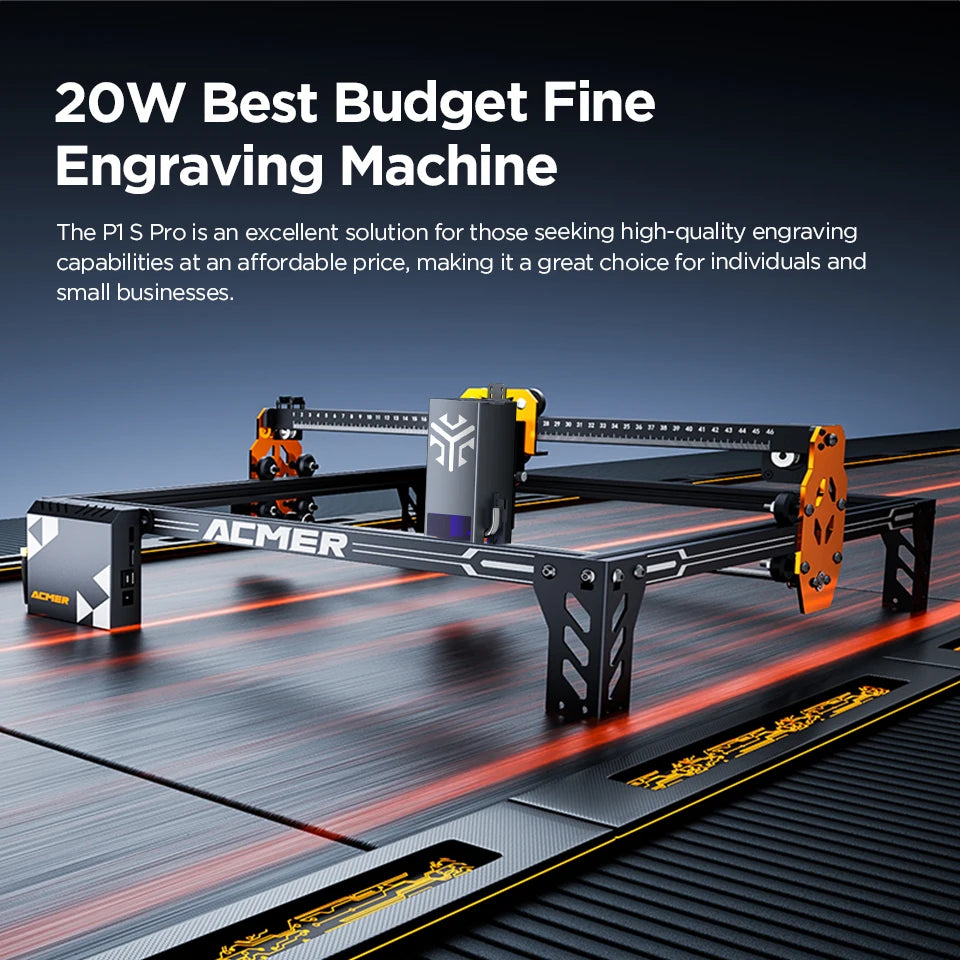

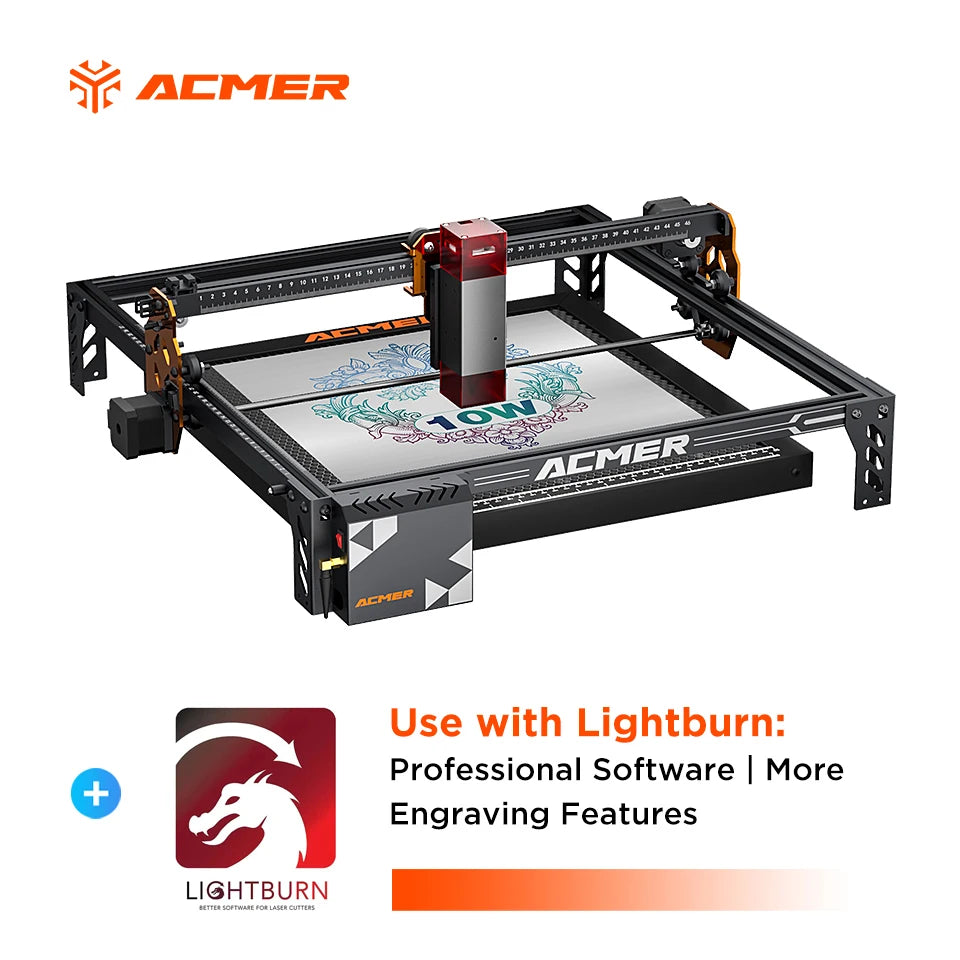

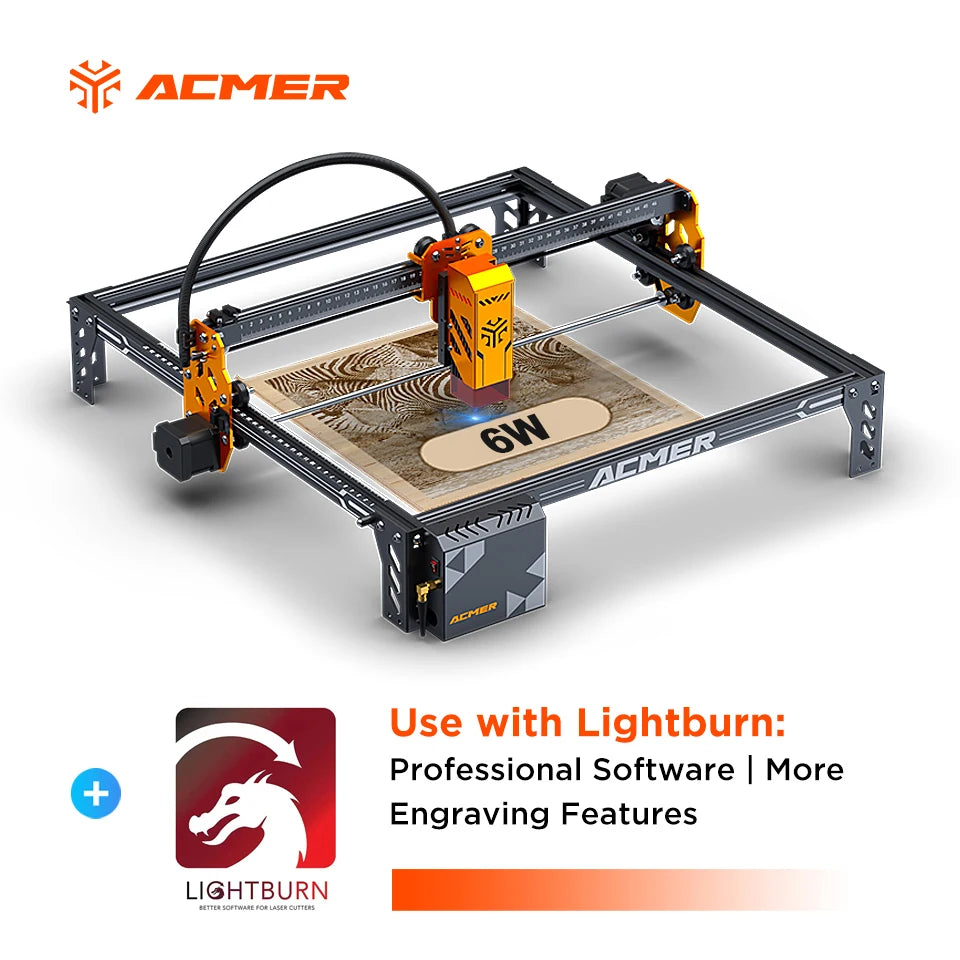

ACMER Model: P1 S PRO

Assembly method: DIY

Brand Name: ACMER

Certification: CE,ce

Connection Method: USB / APP /TF

Engraving Area: Other

Engraving accuracy: 0.01mm

Function 1: TF card

Function 2: WIFI

Function 3: Gyroscope

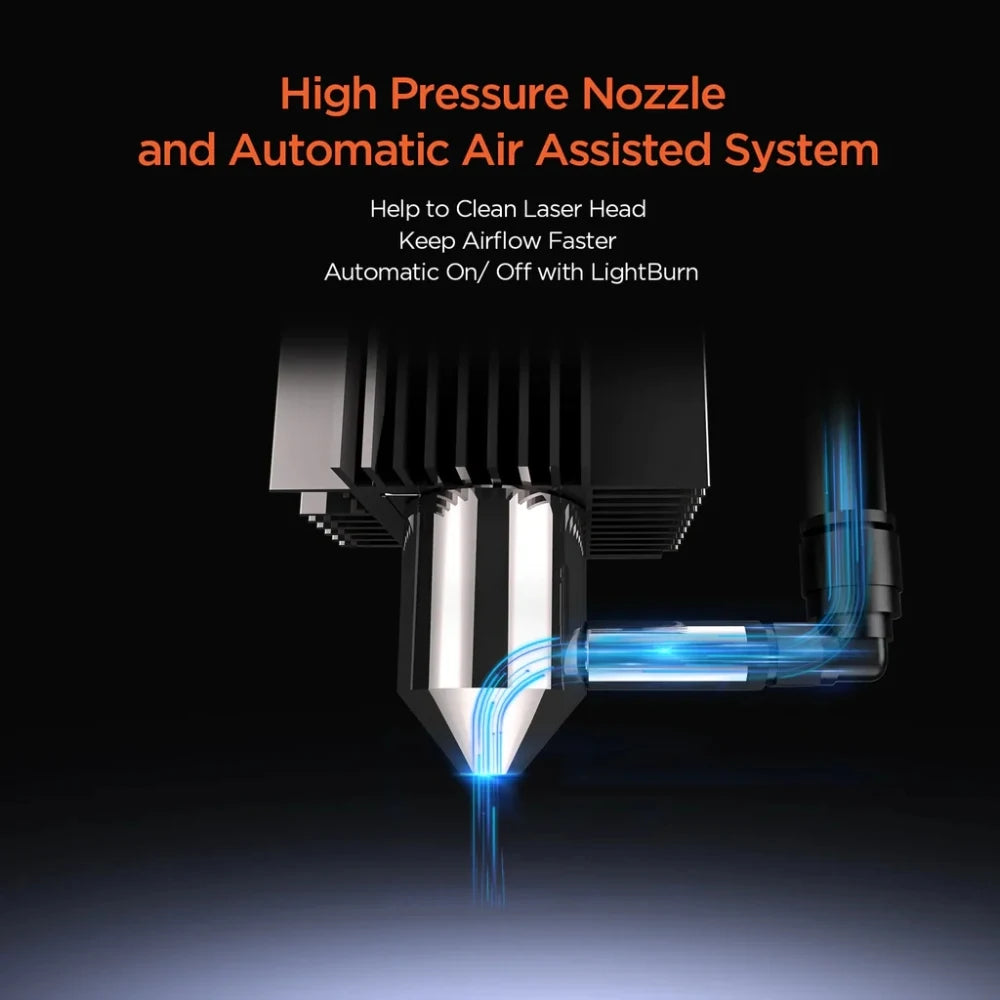

Function 4: Air Assist Pump

Hign-concerned Chemical: None

Is Smart Device: Yes

Laser Power: Other

Laser output power: 20000mW/10000mW/6000mW

Laser type: Diode Laser

Laser wavelength: 455±5nm

Machine size: 575*560*200mm

Machine weight: 4kg

Maximum engraving speed: 10000mm/min

Model Number: P1 S Pro

Motion structure: Pulley Drive

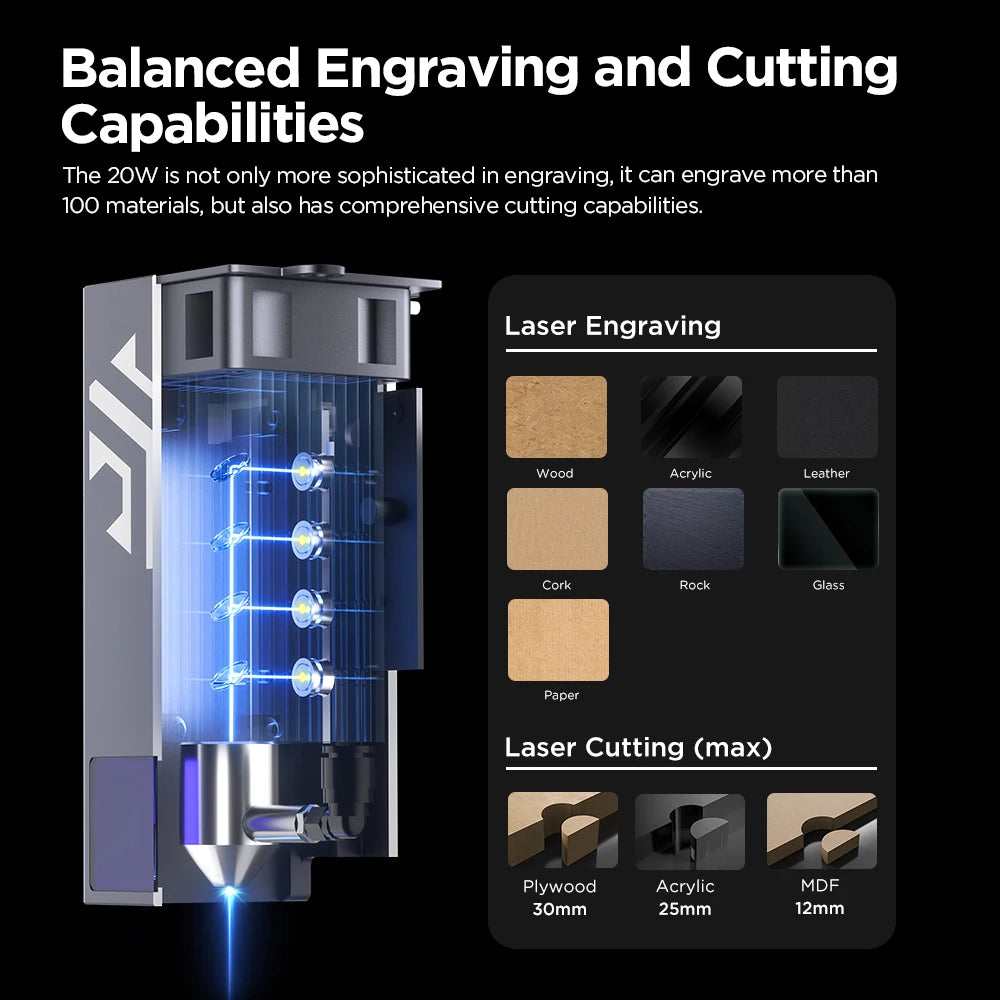

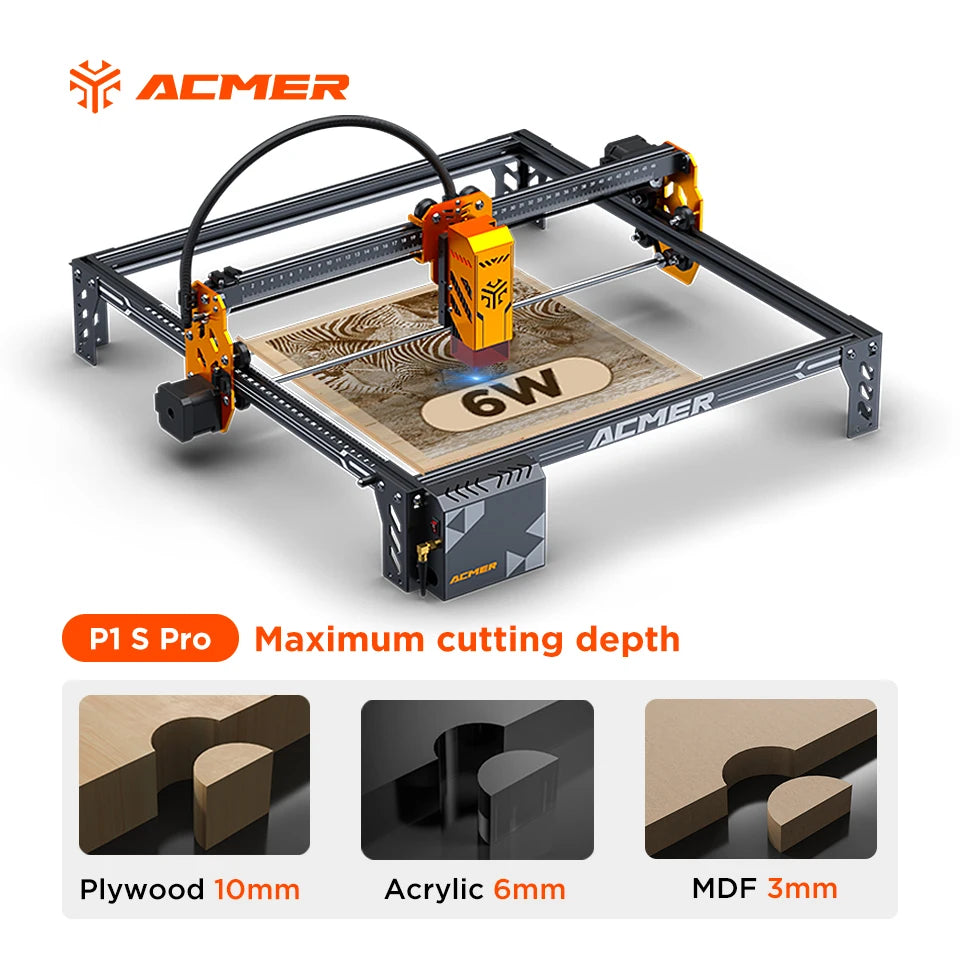

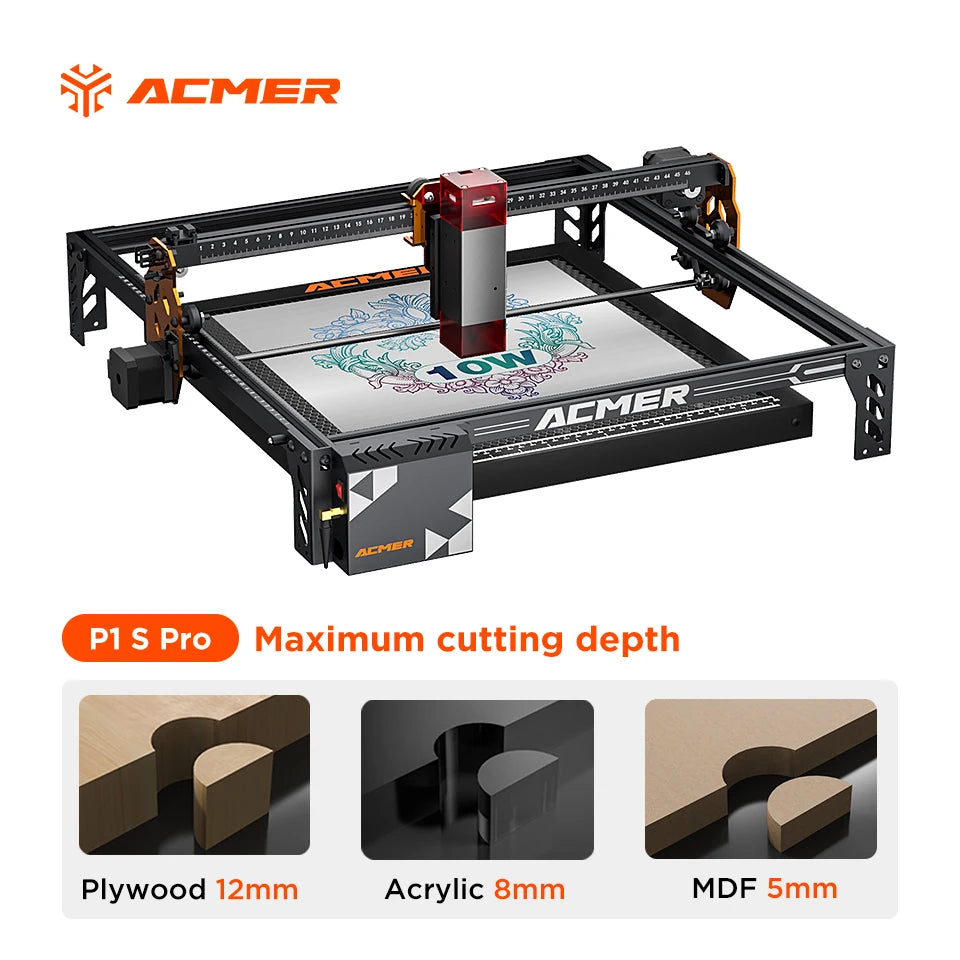

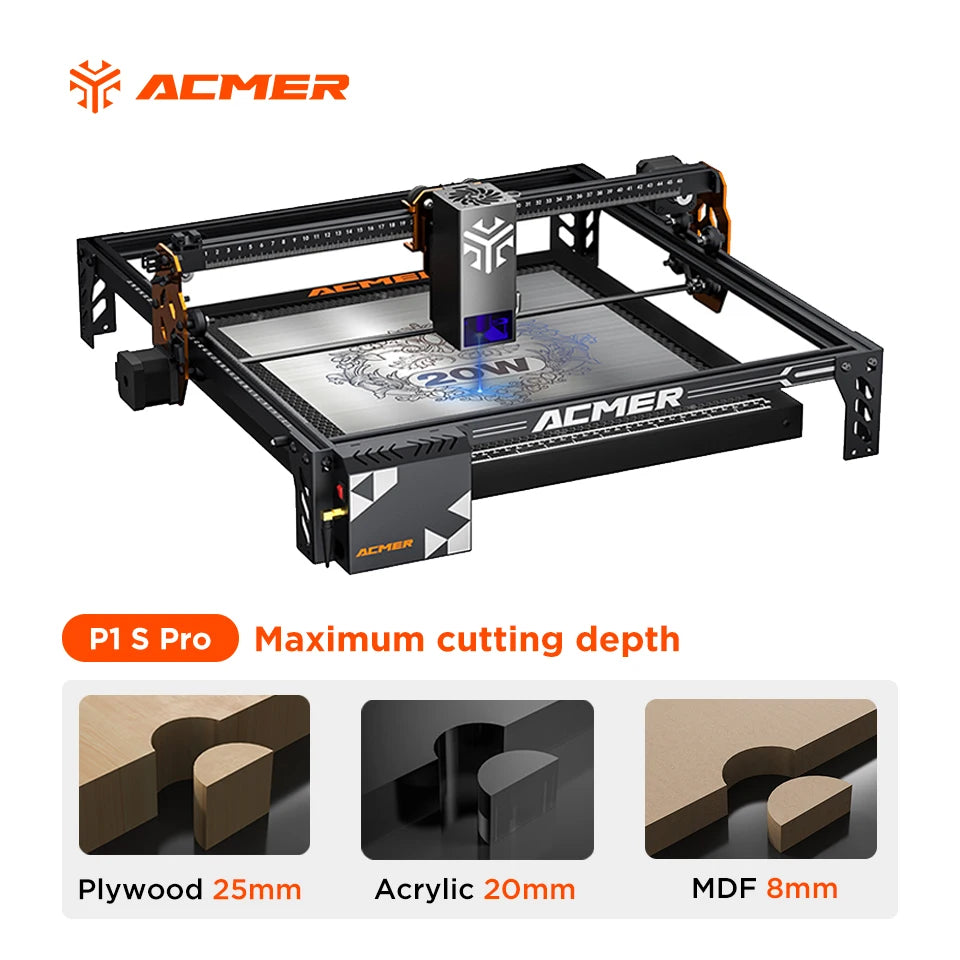

Support cutting: Plywood, Acrylic, MDF, Paulownia Wood

Support engraving: Wood, Bamboo, Paper, Plastic, Leather, PCB board, Aluminium Oxide, Non-Reflective Coating and Lacquered Metal,Ceramic

Supported file format: NC, DXF, BMP, JPG, PNG, etc.

Supported operating systems: macOS, Windows, Linux, Android, iOS

Working area size: 380*370mm

Working distance: 5mm
